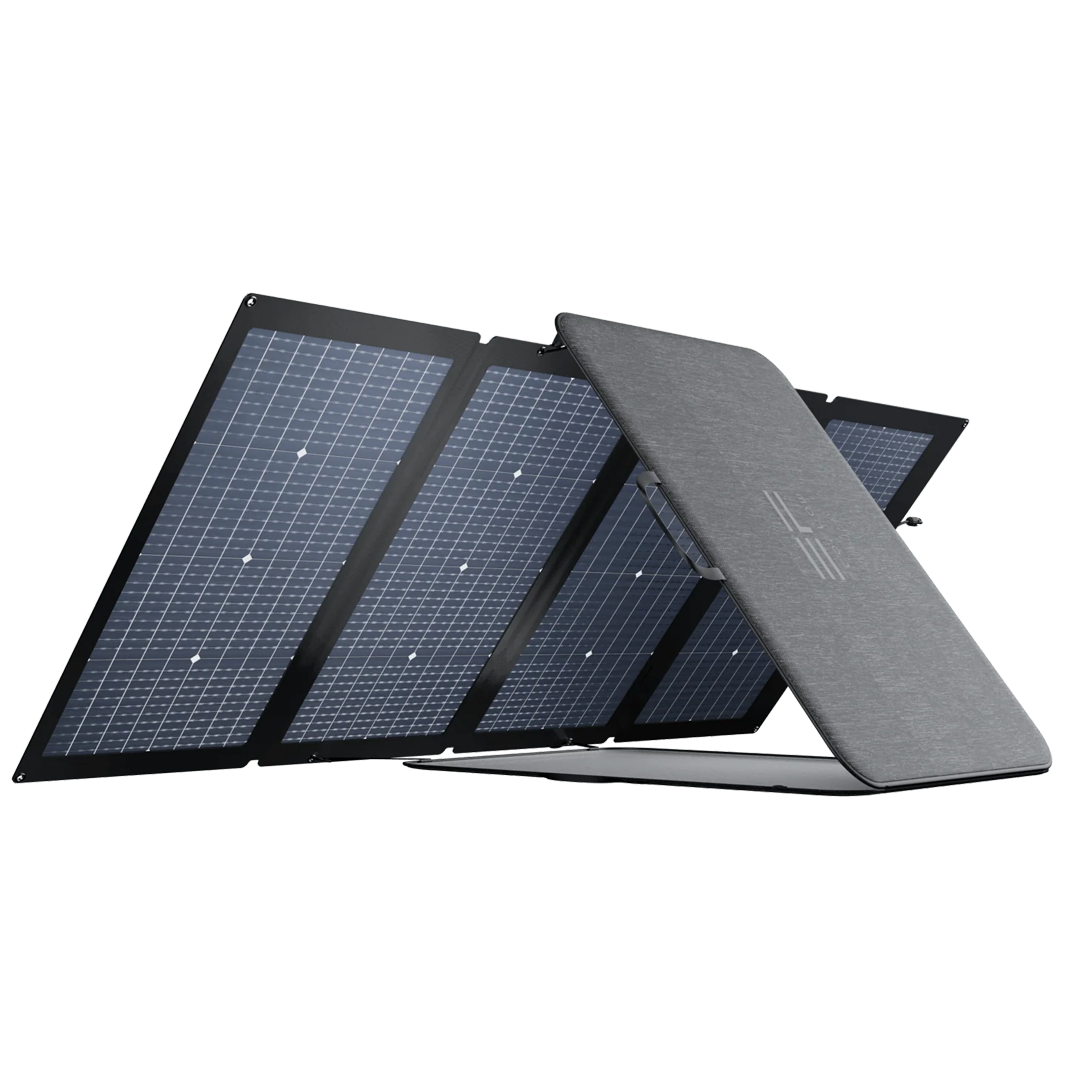

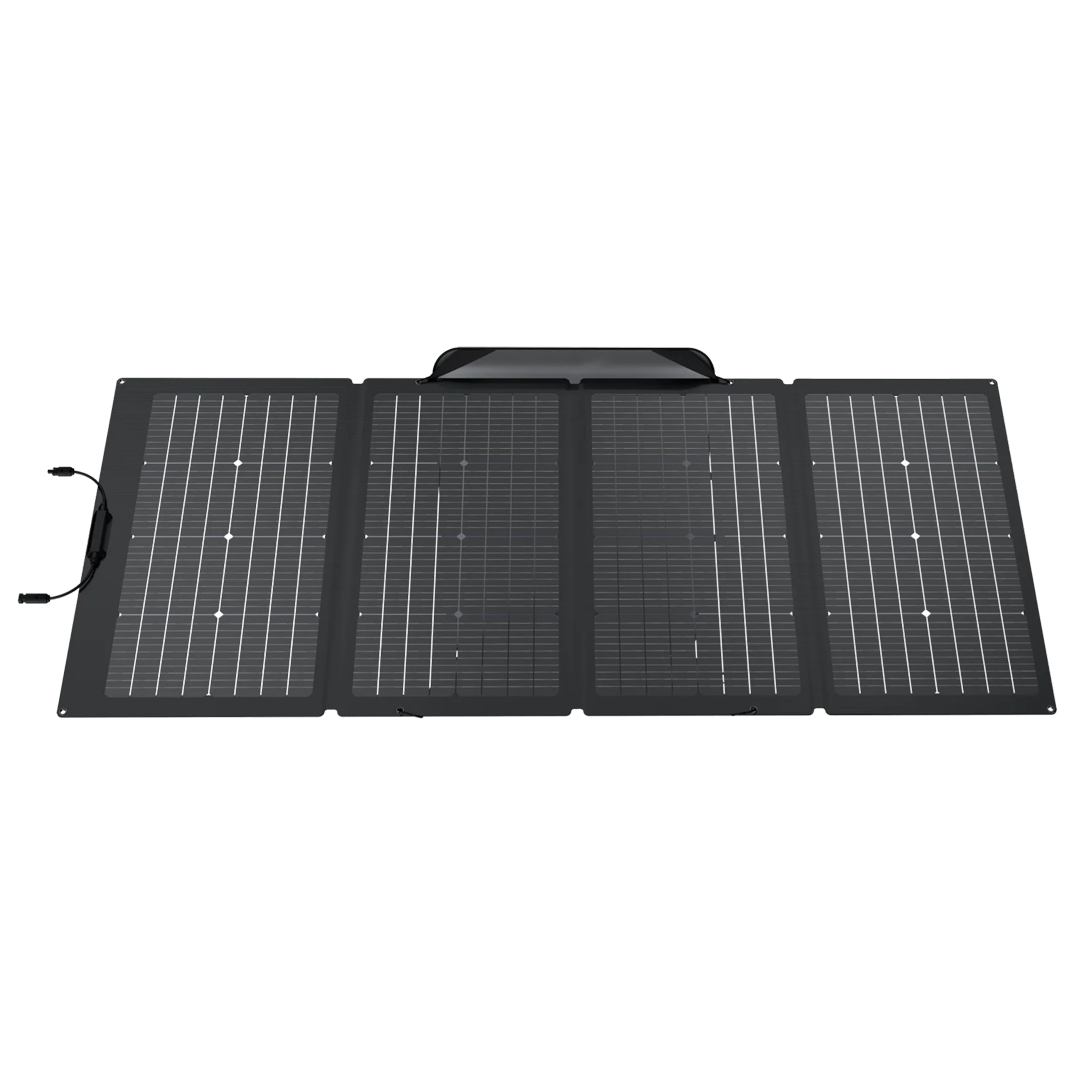

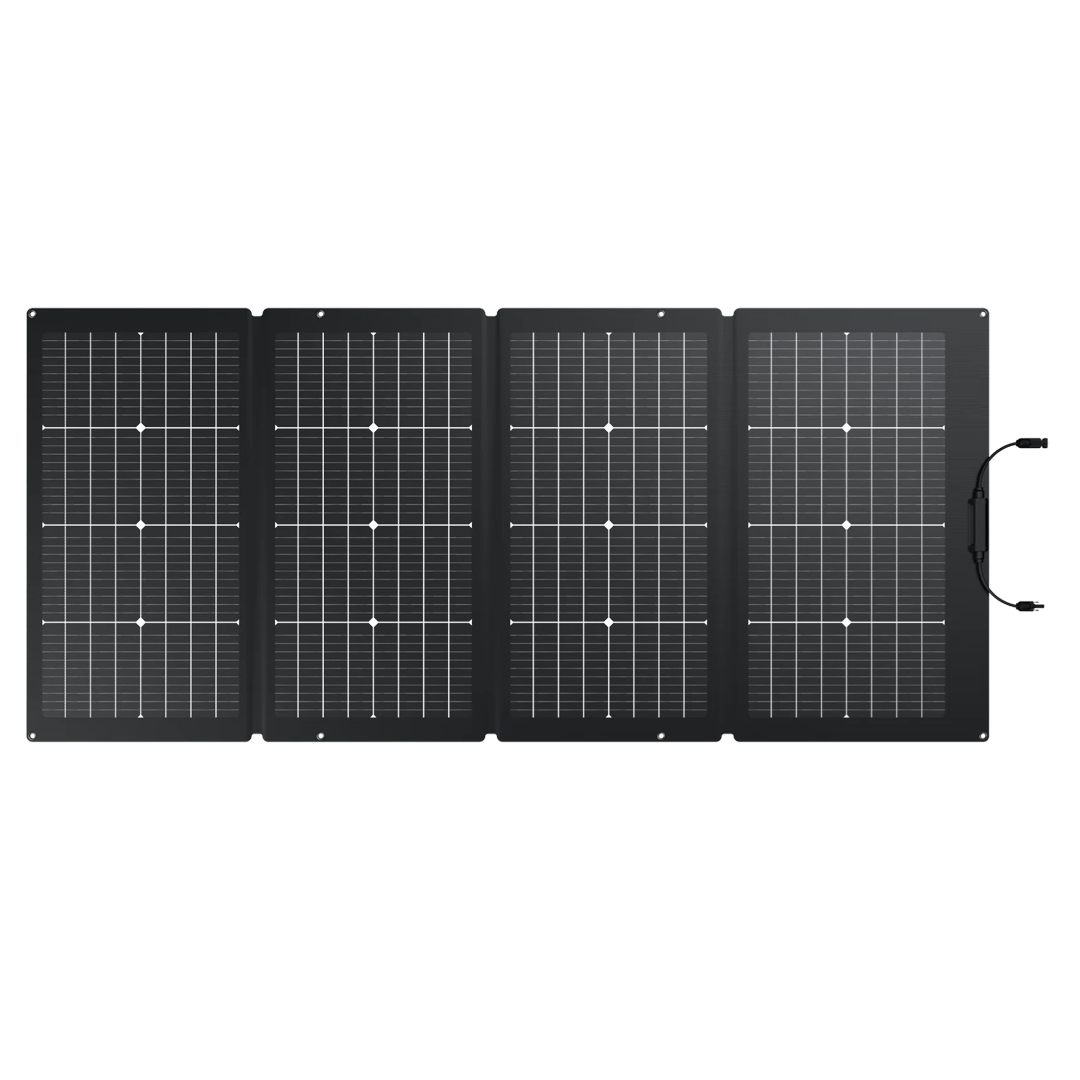

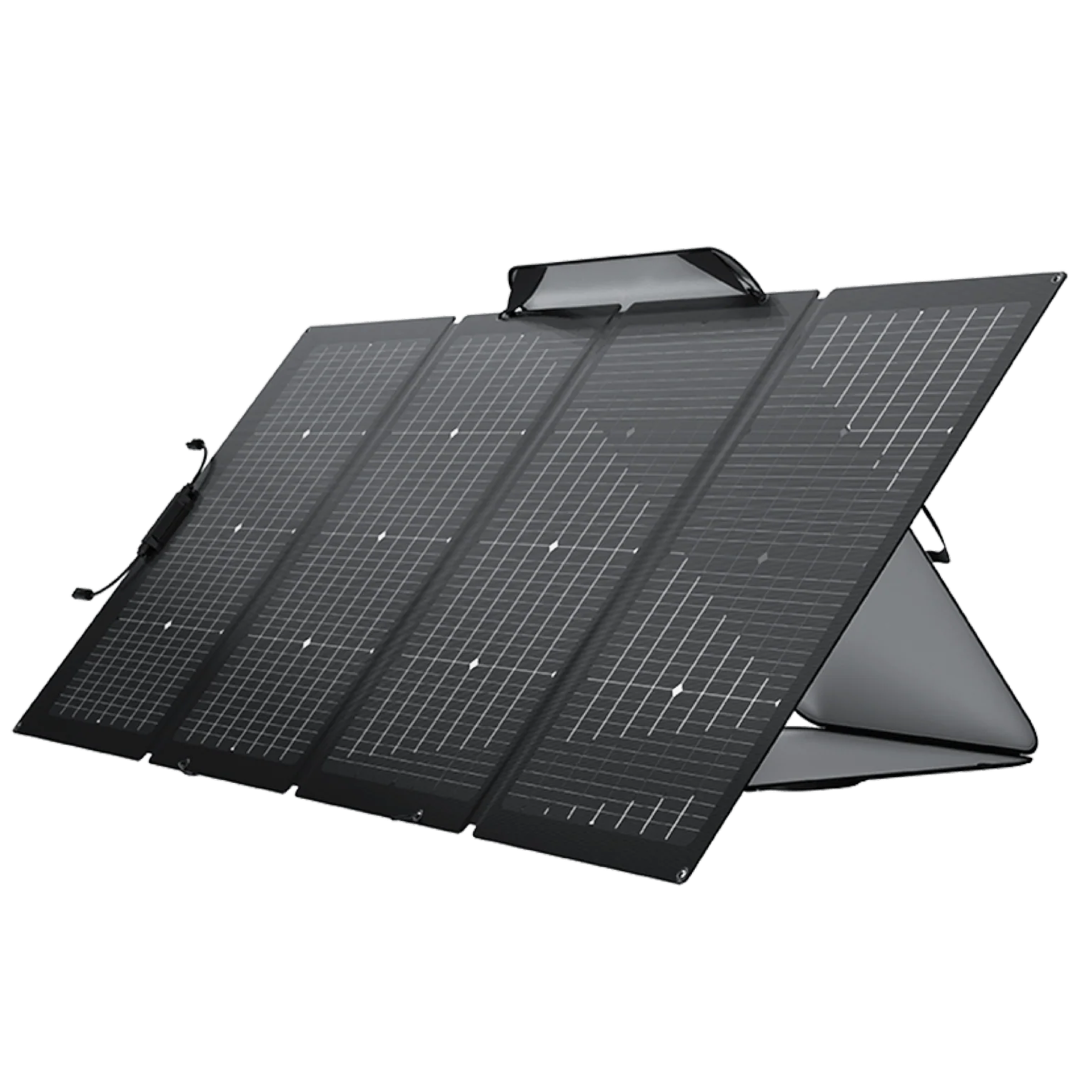

Ecoflow 220W Bifacial solar panel, monocrystalline
Harness every angle. The EcoFlow 220W Bifacial Portable Solar Panel is a solar panel that features a...
Vendor:
Ecoflow
SKU:
ECO-PANEL-220W
Availability:
16
In Stock
Product Type:
ENERGY : Solar PV Panels
- R 7,699.00 (including VAT)
-
R 12,499.00 - R 7,699.00
- Unit price
- per
Subtotal:
R 7,699.00
Couldn't load pickup availability
Description
x
Harness every angle.
The EcoFlow 220W Bifacial Portable Solar Panel is a solar panel that features a unique two-in-one bifacial design, allowing it to collect more energy than traditional solar panels. With a high conversion rate of up to 23%, this solar panel is able to convert sunlight into electricity with exceptional efficiency.
The tempered glass used in the EcoFlow 220W Bifacial Portable Solar Panel is both durable and long-lasting, making it ideal for use in harsh outdoor environments. Additionally, the solar panel is self-supporting and features an adjustable angle, allowing you to position it for optimal sunlight exposure.
One of the key benefits of the EcoFlow 220W Bifacial Portable Solar Panel is its IP68 waterproof rating, which means it can withstand immersion in water up to a depth of 1.5 meters for up to 30 minutes. This makes it an excellent choice for use in wet or humid conditions, as well as in areas with a high risk of water damage.
A Solar Panel That Endures
This 220W Bifacial solar panel is built to endure and has been crafted using a thin, one-piece tempered glass design that is five times more durable than comparable panels, despite being only half the thickness of traditional tempered glass. With the ability to withstand temperatures of up to 149°C, it is safe to say that this panel is highly resistant to the elements and has been built to last for the long haul.
TWaterproof & Durable: his panel sets a new standard for durability, as it is fully sealed against both water and dust. With an IP68 waterproof rating, you can rest assured that it will remain safe and protected, no matter the weather conditions. Whether it's raining, windy, or sunny, this panel will continue to perform at its best, making it a reliable and trustworthy choice.
This solar panel is highly portable and has been specifically designed to be compact. It boasts a size that is 10% smaller than comparable 220W panels, allowing for greater space-saving capabilities. This is achieved through the use of thinner tempered glass and a reduced surface area requirement for the same input, making it a highly efficient and convenient option for those on-the-go.
Key features:
Rated Power: 220W (+/-5W)
Open Circuit Voltage: 21.8 V
Cell Type: Monocrystalline silicon
Bifaciality Coefficients: 70%±10%
Connector type: MC4
Make the most out of all the sun has to offer
The rear side solar gain refers to the amount of solar energy that is absorbed by the back of the solar panel, which can impact the overall efficiency of the panel. It's important to consider the type of surface that the solar panel is installed on, as different surfaces can reflect or absorb solar energy differently. For example, a solar panel installed on a white or light-colored roof may reflect more solar energy than a panel installed on a dark-colored roof, which could impact the rear side solar gain.
Understanding the rear side solar gain is important for maximizing the efficiency of solar panels and ensuring that they are installed in the most effective way possible. By analyzing data on rear side solar gain using different surfaces, it is possible to identify the best installation methods for solar panels and improve their overall performance.
What's in the box?
1. 220W Bifacial Solar Panel | 2. 220W Bifacial Solar Panel Protective Case (Kickstand) | 3. 220W Bifacial Solar Panel User Manual and Warranty Card | 4. Snap Hooks 5. Solar to XT60 Charging Cable
Parameter
Rated Power: 220W (+/-5W)* Front Side / 155W(+/-5W)* Rear Side
Open Circuit Voltage: 21.8V (Vmp 18.4V)
Short Circuit Current: 13A (Imp 12.0A) Front Side / 8.8A(Imp 8.4A) Rear Side
Bifaciality Coefficients: 70%±10%
Efficiency: 22%–23%
Cell Type: Monocrystalline silicon
Connector type: MC4
General Information
Solar Panel: Approximately 9.5 Kg
Unfolded Dimensions: 82.0*183.5*2.5cm
Folded Dimensions: 82.0*50.0*3.2cm
Warranty: 12 months
The product conforms to the following compliance standards:
