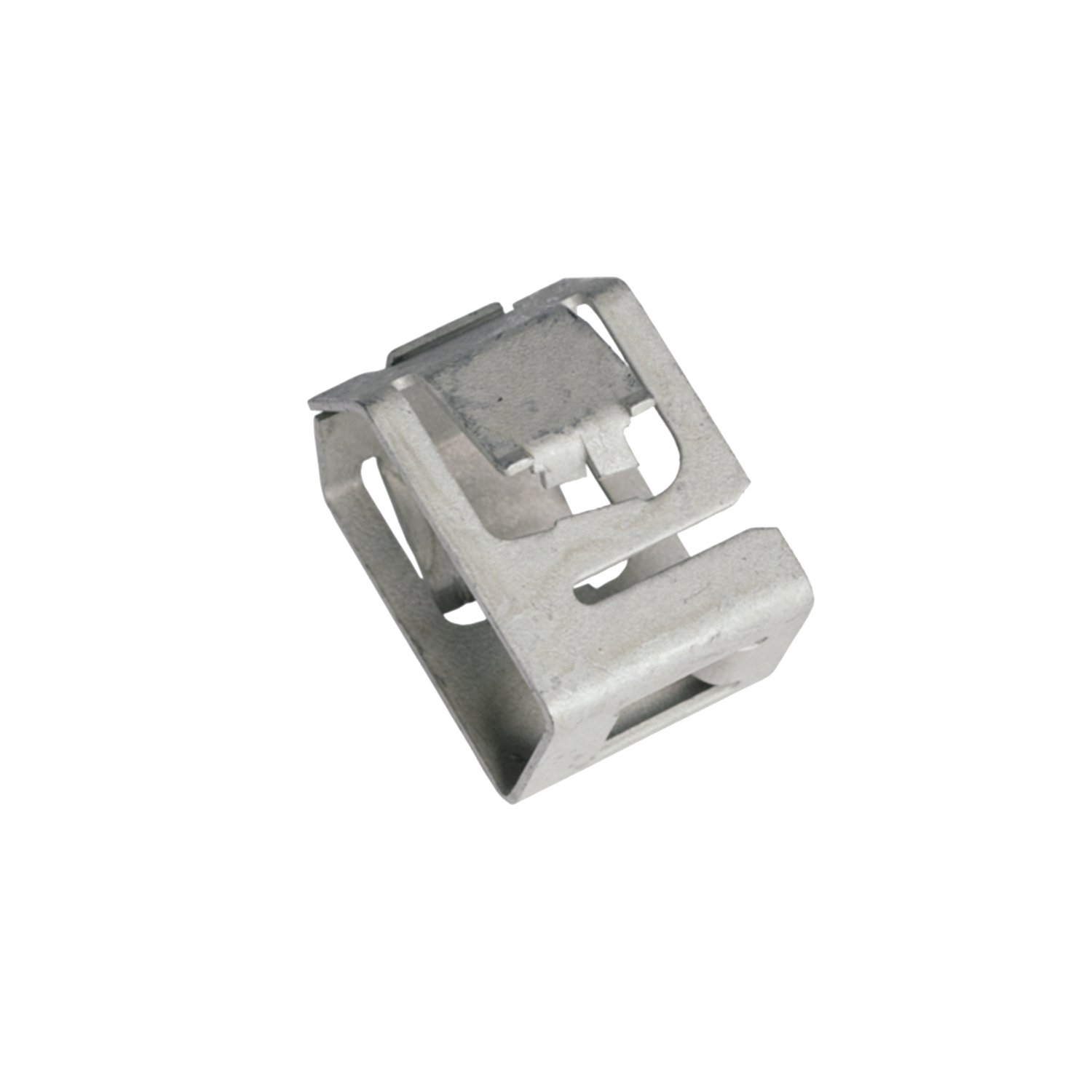

ARaymond Powar snap S plus, anti-theft clip, new version

The ARaymond Powar snap S plus anti-theft clip is a significant improvement over traditional fastening methods that require screws and tools, which can be time-consuming and labor-intensive. By eliminating the need for screws and tools, this fastening solution can help reduce costs and speed up assembly times for renewable energy projects.

Furthermore, the anti-theft clip feature provides an added layer of security for the project. This could be particularly important for renewable energy projects located in remote or unmonitored areas where theft or tampering could be a concern. Overall, the ARaymond Powar snap S plus anti-theft clip is a promising solution that benefits the renewable energy industry.

Key Features:

• Tool-Free Installation: Eliminates the need for screws and tools, reducing assembly time.
• Anti-Theft Design: Added security feature to protect installations from tampering.
• Corrosion Resistant: Made of stainless steel and polyamide materials for durability.
• UV Resistant: Xenon test equivalent to 30 years in the field.
• Wind Load Tested: Can withstand winds of up to 216 km/h (134 mph).
• Fire Rating: UL94V0 certified for safety compliance.

Technical Specifications:

• Width: 27mm
• Length: 65mm
• Height: 18mm
• Weight: 28g
• Max clamp load: 200N
• Suitable for frame thickness: 30-50mm
• Salt spray tested: 500 hours

Benefits:

• 1 module can be installed within 30 seconds
• Lower overall costs of PV installation
• Screw-less design with no periodic torque control required
• Hot spot risk reduction for PV modules thanks to elastic mechanical clamping
