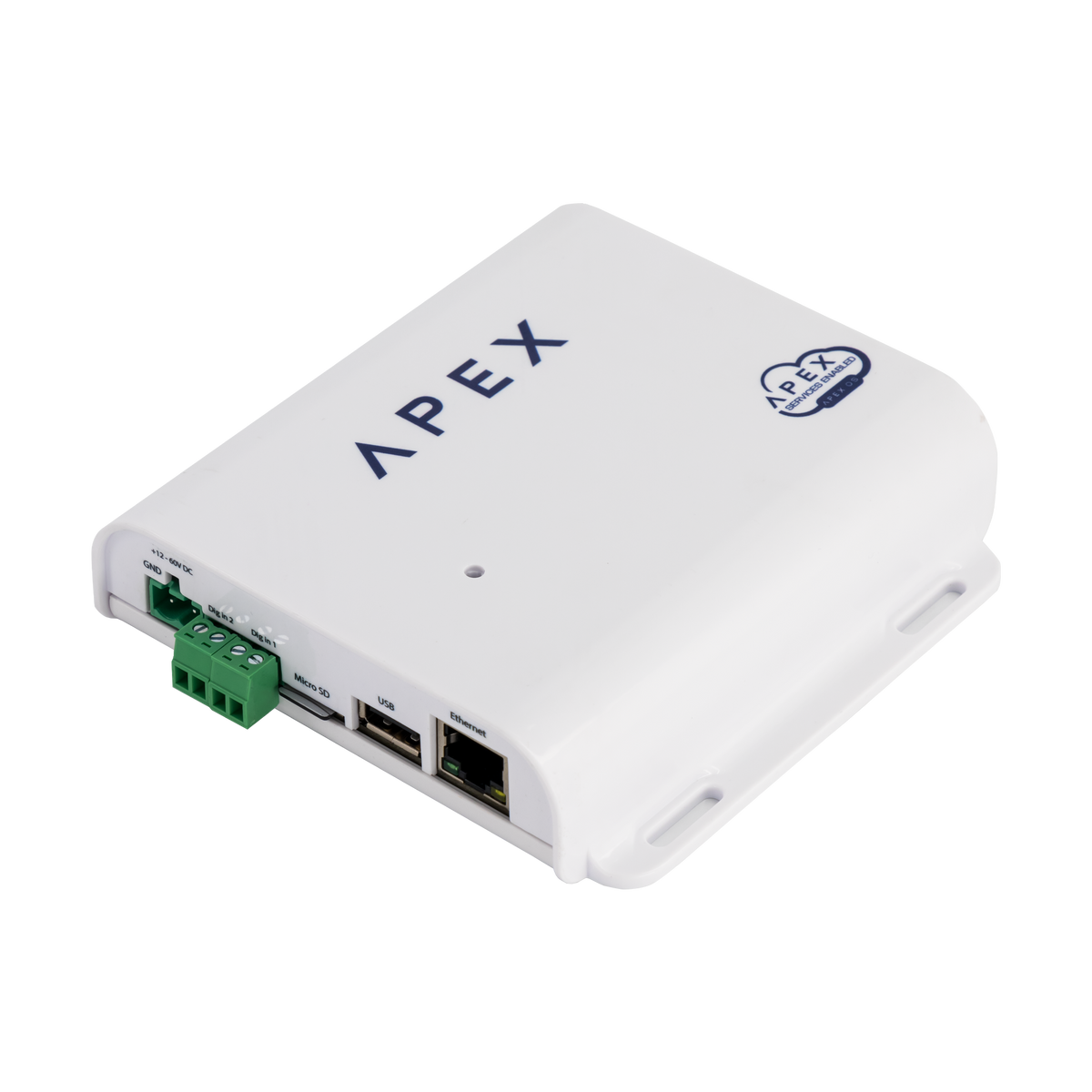

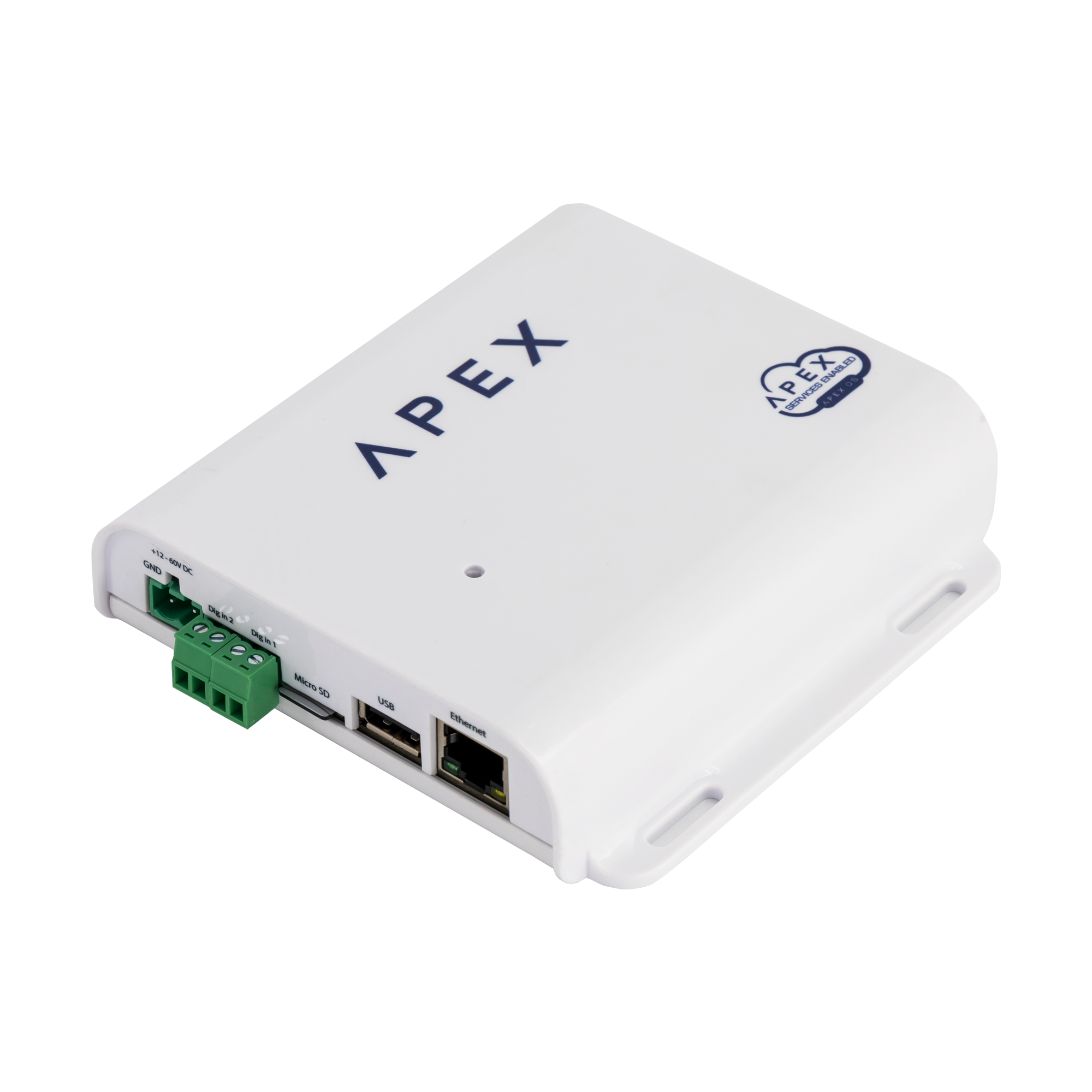

Apex Edge Monitoring and Control Device
Apex Edge Monitoring and Control Device

Apex Edge monitoring and control device

APEX Edge Device (Model: FG-ED-00) - A compact monitoring and control device designed for inverters, energy meters, and batteries. It bridges field devices with cloud platforms through multiple communication interfaces. Key Features Real-time monitoring of energy infrastructure Remote control and management capabilities Multiple connectivity options (Wi-Fi, Ethernet, LTE, LoRa) Cloud...
Vendor: Rubicon Retail Store
SKU: FG-ED-00
Availability: 4 In Stock
Product Type: ENERGY : Other
R 1,333.90 (including VAT)
R 1,333.90
Subtotal: R 1,333.90
Apex Edge Monitoring and Control Device

Rubicon Retail Store

Apex Edge monitoring and control device

R 1,333.90
Apex Edge Monitoring and Control Device

Rubicon Retail Store

Apex Edge monitoring and control device

R 1,333.90
Description
Description
x

APEX Edge Device (Model: FG-ED-00) - A compact monitoring and control device designed for inverters, energy meters, and batteries. It bridges field devices with cloud platforms through multiple communication interfaces.

Key Features

  • Real-time monitoring of energy infrastructure
  • Remote control and management capabilities
  • Multiple connectivity options (Wi-Fi, Ethernet, LTE, LoRa)
  • Cloud and local SD card storage
  • Mobile device configuration via Wi-Fi hotspot
  • 2x 5A dry contact outputs for device control

Technical Specifications

Model FG-ED-00
Power Supply 12-60V DC
Storage SD Card up to 64GB (FAT32)
Serial Interfaces RS-232, RS-485, CAN Bus, USB
Digital Outputs 2x Dry contact (5A, 250VAC/30VDC)
Digital Inputs 2x Voltage-free inputs
Protection Rating IP20
Mounting Surface mounted

Configuration

  • Wi-Fi Hotspot: APEX_<serial>
  • Default Password: 123456789
  • Web Interface: http://192.168.4.1
  • Cloud Portal: monitoring.rubiconsa.com

Optional Add-on

LTE Add-on Module (FG-ED-LT) - For cellular connectivity when Wi-Fi or Ethernet is not available.
